Curves and stones

I’ve got a project I’m working on where I’ve been inspired by the elemental stones in the Fifth Element movie you can see to the right.

In this post I’ll produce this chart:

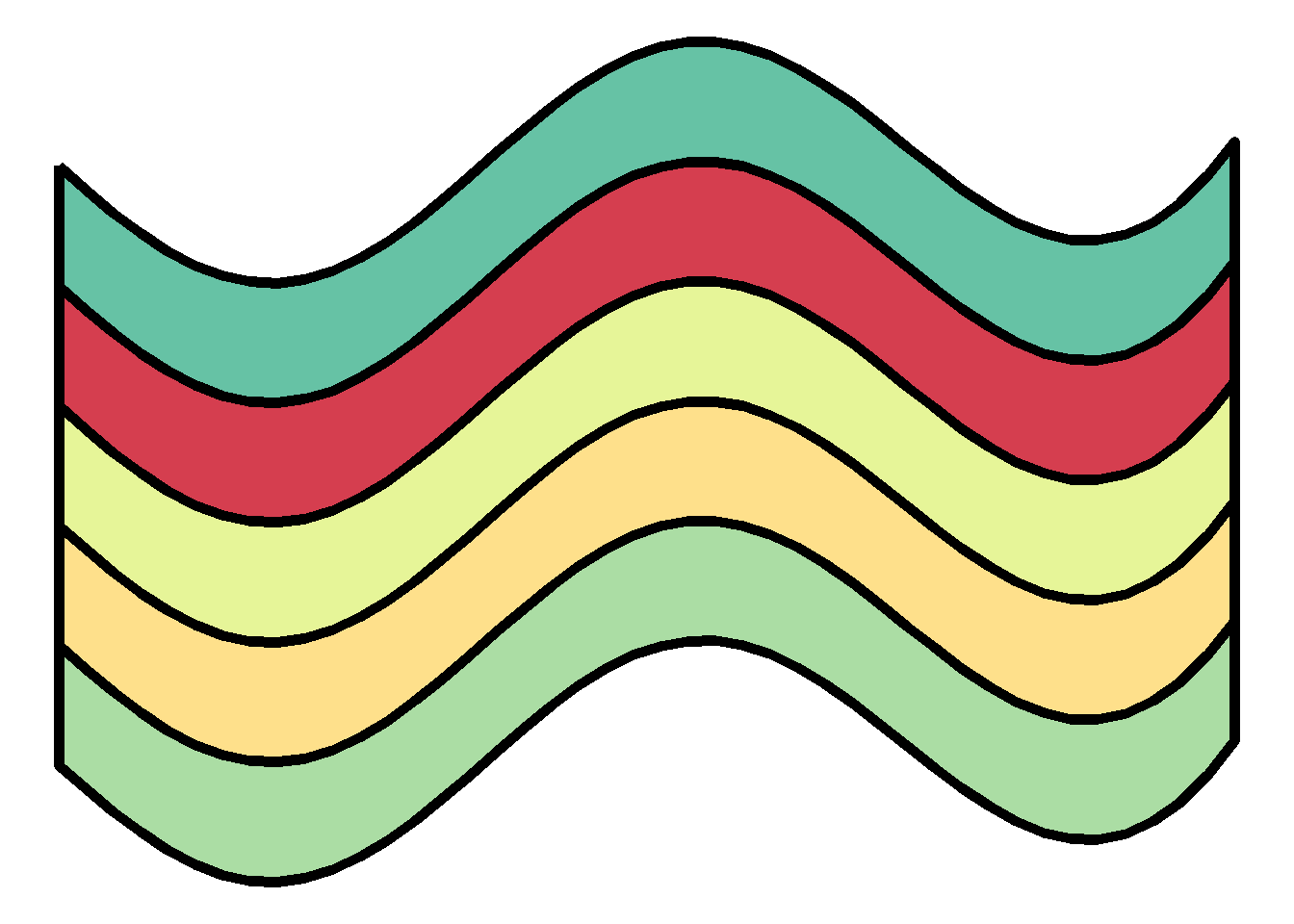

Have you ever seen Megan Harris’ incredible generative art built with R? If not - please take a look! While I was researching ways to make wavy lines with {ggplot2} I came across Megan’s blogpost where she makes this beautiful chart.

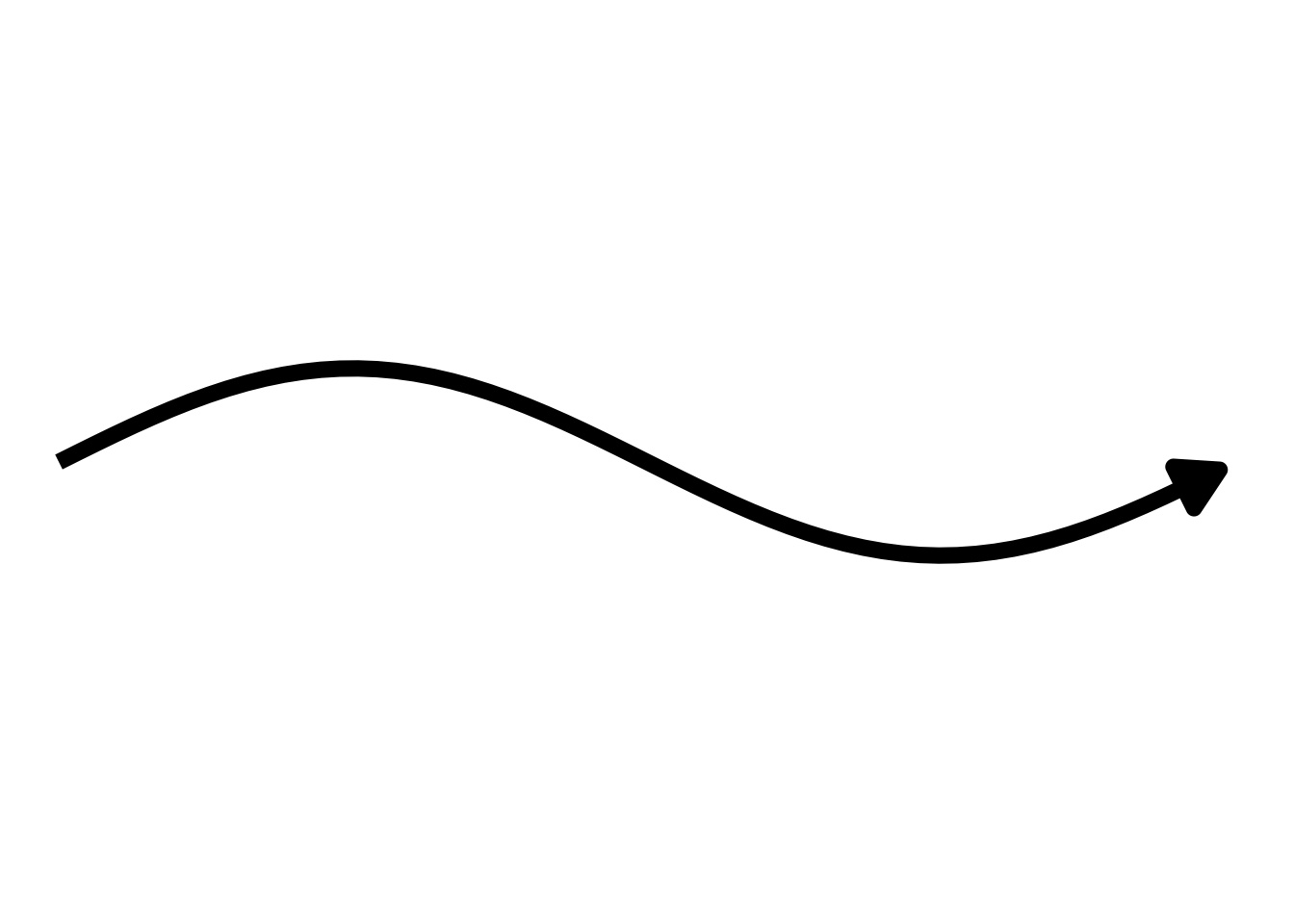

Borrowing pretty much directly from Megan’s code, here’s a nice sine curve that looks a little like the lines on the stones:

library("tidyverse")

theta <- seq(from = 0,
             to = 2*pi,
             length.out = 100)

sine <- tibble(x = theta,
               y = sin(theta),
               label = 1:length(theta))

wave_theta <- seq(from = 0,
                  to = 2 * pi,
                  by = .1)

curve_top <- tibble(x = wave_theta,
                    y = sin(x)) %>%
  arrange(x)

curve_top %>%
  ggplot(aes(x=x, y=y))+
  geom_path(arrow = arrow(type="closed"), linewidth = 3) +
  coord_fixed(xlim = c(0, 2 * pi),
              ratio = 1 / 2) +
  theme_void()

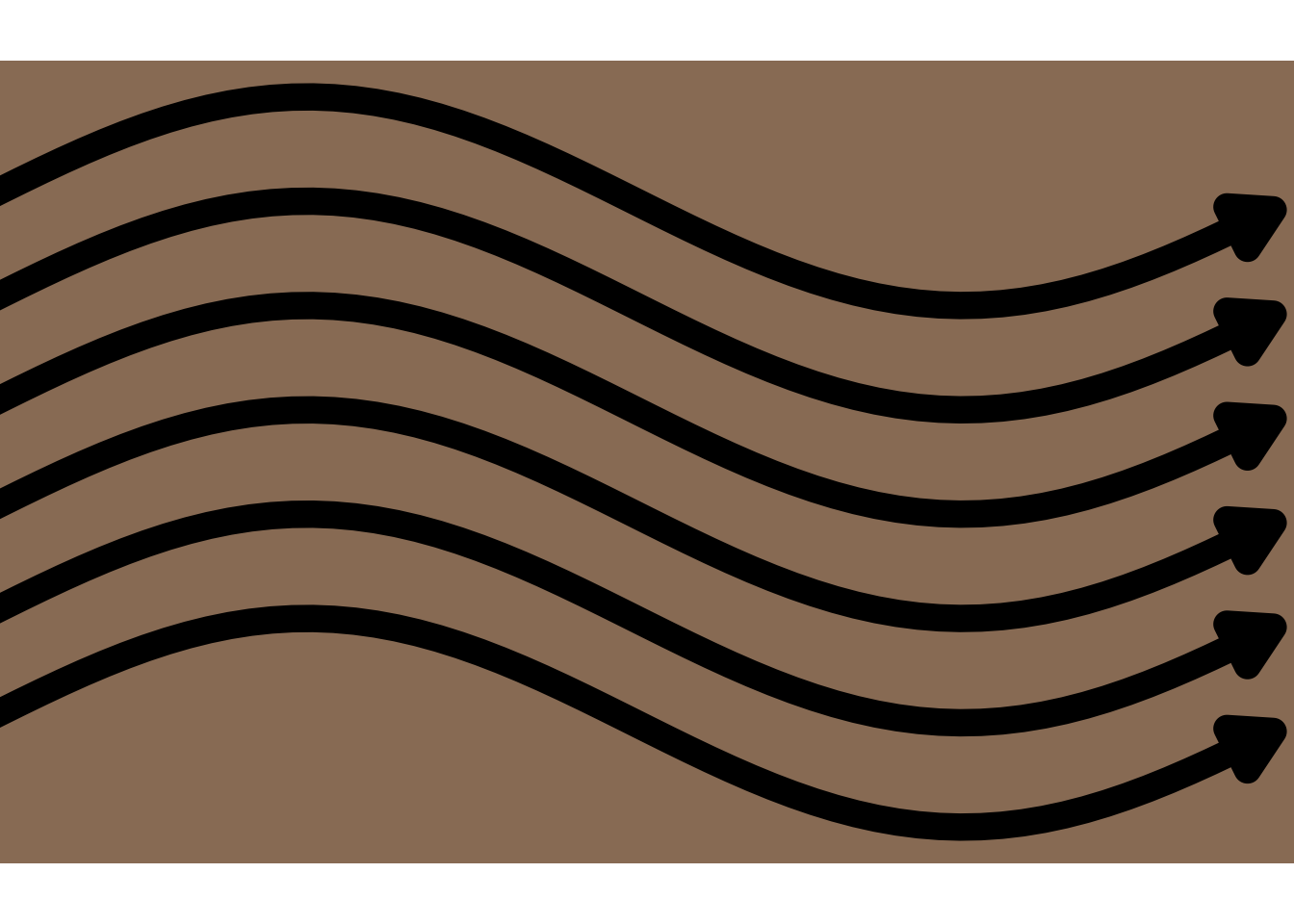

Nice! Okay. So let’s stack 6 of these on top of one another:

wave_theta <- seq(from = 0,
                  to = 2 * pi,
                  by = .1)

tibble(x = rep(seq(from = 0,
                  to = 2 * pi,
                  by = .1) , 6),
       line = rep(1:6, each = length(wave_theta))) %>%
  mutate(y = line + sin(x),
         line = as.character(line)) %>%
  ggplot(aes(x=x, y=y, group = line))+
  geom_path(arrow = arrow(type="closed"), linewidth = 5, show.legend = FALSE) +
  scale_x_continuous(expand = expansion(mult = 0, add = c(-0.1, 0.1))) +
  coord_fixed(ratio = 1 / 2) +
  theme_void() +
  theme(panel.background = element_rect(fill = "#9A7D66", colour = "transparent"),
        panel.border = element_blank())

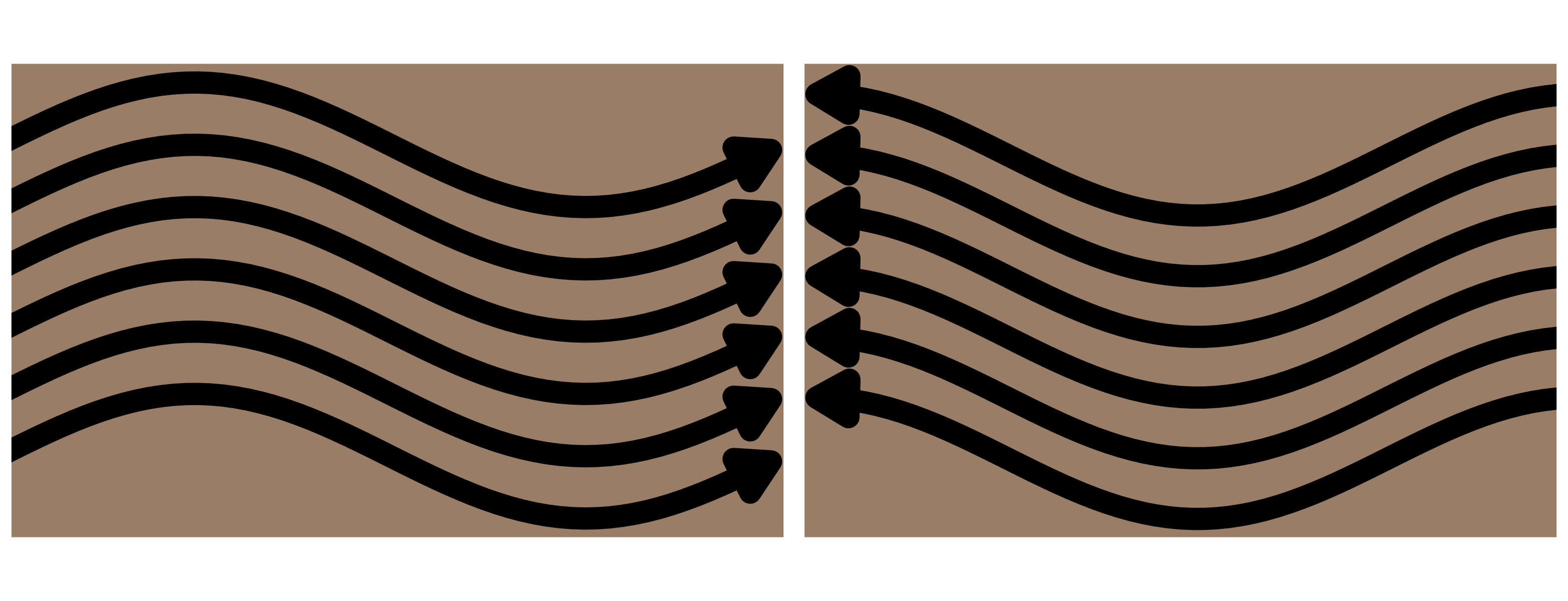

I then played around with reflecting these and also making vertical lines… it didn’t quite look right:

library("patchwork")

gg_L2R_sin_arrowed <- tibble(x = rep(seq(from = 0,
                  to = 2 * pi,
                  by = .1) , 6),
       line = rep(1:6, each = length(wave_theta))) %>%
  mutate(y = line + sin(x),
         line = as.character(line)) %>%
  ggplot(aes(x=x, y=y, group = line))+
  geom_path(arrow = arrow(type="closed", ends = "last"), linewidth = 5, show.legend = FALSE) +
  scale_x_continuous(expand = expansion(mult = 0, add = c(-0.1, 0.1))) +
  scale_y_continuous(expand = expansion(0, c(0.3, 0.3))) +
  coord_fixed(ratio = 1 / 2,
              ylim = c(0, 7)) +
  theme_void() +
  theme(panel.background = element_rect(fill = "#9A7D66", colour = "transparent"),
        panel.border = element_blank())

gg_R2L_cos_arrowed <- tibble(x = rep(seq(from = 0,
                  to = 2 * pi,
                  by = .1) , 6),
       line = rep(-1:4, each = length(wave_theta))) %>%
  mutate(y = line + cos(x),
         line = as.character(line)) %>%
  ggplot(aes(x=x, y=y, group = line))+
  geom_path(arrow = arrow(type="closed", ends = "first"), linewidth = 5, show.legend = FALSE) +
  scale_x_continuous(expand = expansion(mult = 0, add = c(0.1, -0.1))) +
  scale_y_continuous(expand = expansion(0, c(0.3, 0.3))) +
  coord_fixed(ratio = 1 / 2,
              ylim = c(-2, 5.2)) +
  theme_void() +
  theme(panel.background = element_rect(fill = "#9A7D66", colour = "transparent"),
        panel.border = element_blank())

ggptch_both_horiz <- gg_L2R_sin_arrowed + theme(plot.margin = margin(r = 10)) | gg_R2L_cos_arrowed

ggptch_both_horiz %>%
  ggsave(quarto_here("ggptch_both_horiz.png"),
         .,
         width = 5.22 * 2,
         height = 4 )

Arrows in the middle?

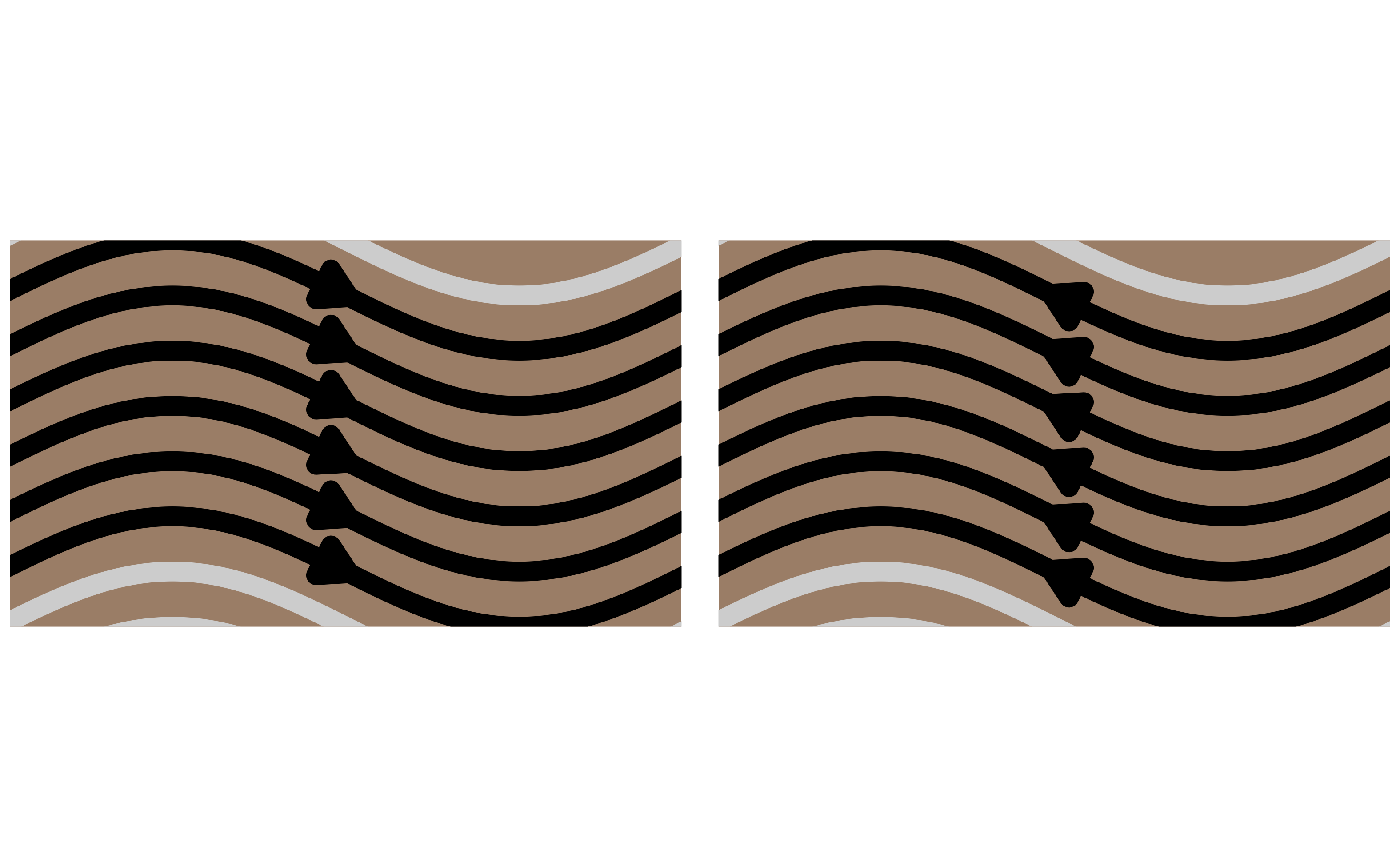

With the arrows at the end of the lines it means that the images need to be padded asymmetrically - or at least it’s not a simple swap between the charts. Let’s see move the arrows to the middle of the lines and swap to using sin for both left and right

seq_x <- seq(from = 0,
                  to = 2 * pi,
                  by = pi / 100)
n_lines <- 11

data_left_and_right <- tibble(x = rep(seq_x, 9),
       line = rep(seq(-1, 7), each = length(seq_x))) %>%
  mutate(y = line + sin(x))

data_arrows_left_and_right <- data_left_and_right %>%
  filter(x %in% c(seq_x[c(100, 102)]),
         between(line, 1, 6)) %>%
  group_by(line) %>%
  summarise(xmin = min(x),
        xmax = max(x),
        ymax = max(y),
        ymin = min(y))

gg_left_to_right <- data_left_and_right %>%
  ggplot(aes(x = x, y = y, group = line)) +
    geom_segment(data = data_arrows_left_and_right,
               aes(x = xmin, y = ymax, xend = xmax, yend = ymin, group = line),
               arrow = arrow(type="closed", ends = "last"), linewidth = 5, show.legend = FALSE) +
  geom_path(linewidth = 5,
            show.legend = FALSE,
            aes(colour = ifelse(between(line, 1, 6), "main", "background"))) +
  scale_x_continuous(expand = expansion(0, -0.1)) +
  scale_y_continuous(expand = expansion(0, 0)) +
  scale_colour_manual(values = c("main" = "black",
                                 "background" = "grey80")) +
  coord_fixed(ratio = 1 / 2, ylim = c(0, 7), xlim = c(0, 2*pi)) +
  theme_void() +
  theme(
    panel.background = element_rect(fill = "#9A7D66", colour = "transparent"),
    panel.border = element_blank()
  )

gg_right_to_left <- data_left_and_right %>%
  ggplot(aes(x = x, y = y, group = line)) +
    geom_segment(data = data_arrows_left_and_right,
               aes(x = xmin, y = ymax, xend = xmax, yend = ymin, group = line),
               arrow = arrow(type="closed", ends = "first"), linewidth = 5, show.legend = FALSE) +
  geom_path(linewidth = 5,
            show.legend = FALSE,
            aes(colour = ifelse(between(line, 1, 6), "main", "background"))) +
  scale_x_continuous(expand = expansion(0, -0.1)) +
  scale_y_continuous(expand = expansion(0, 0)) +
  scale_colour_manual(values = c("main" = "black",
                                 "background" = "grey80")) +
  coord_fixed(ratio = 1 / 2, ylim = c(0, 7), xlim = c(0, 2*pi)) +
  theme_void() +
  theme(
    panel.background = element_rect(fill = "#9A7D66", colour = "transparent"),
    panel.border = element_blank()
  )

ggptch_left_and_right <- gg_left_to_right + theme(plot.margin = margin(r = 20)) | gg_right_to_left

ggptch_left_and_right %>%
  ggsave(quarto_here("ggptch_left_and_right.png"),
         .,
         width = 5 * 2 + 0.5,
         height = 2.5 * 2 + 1.5)

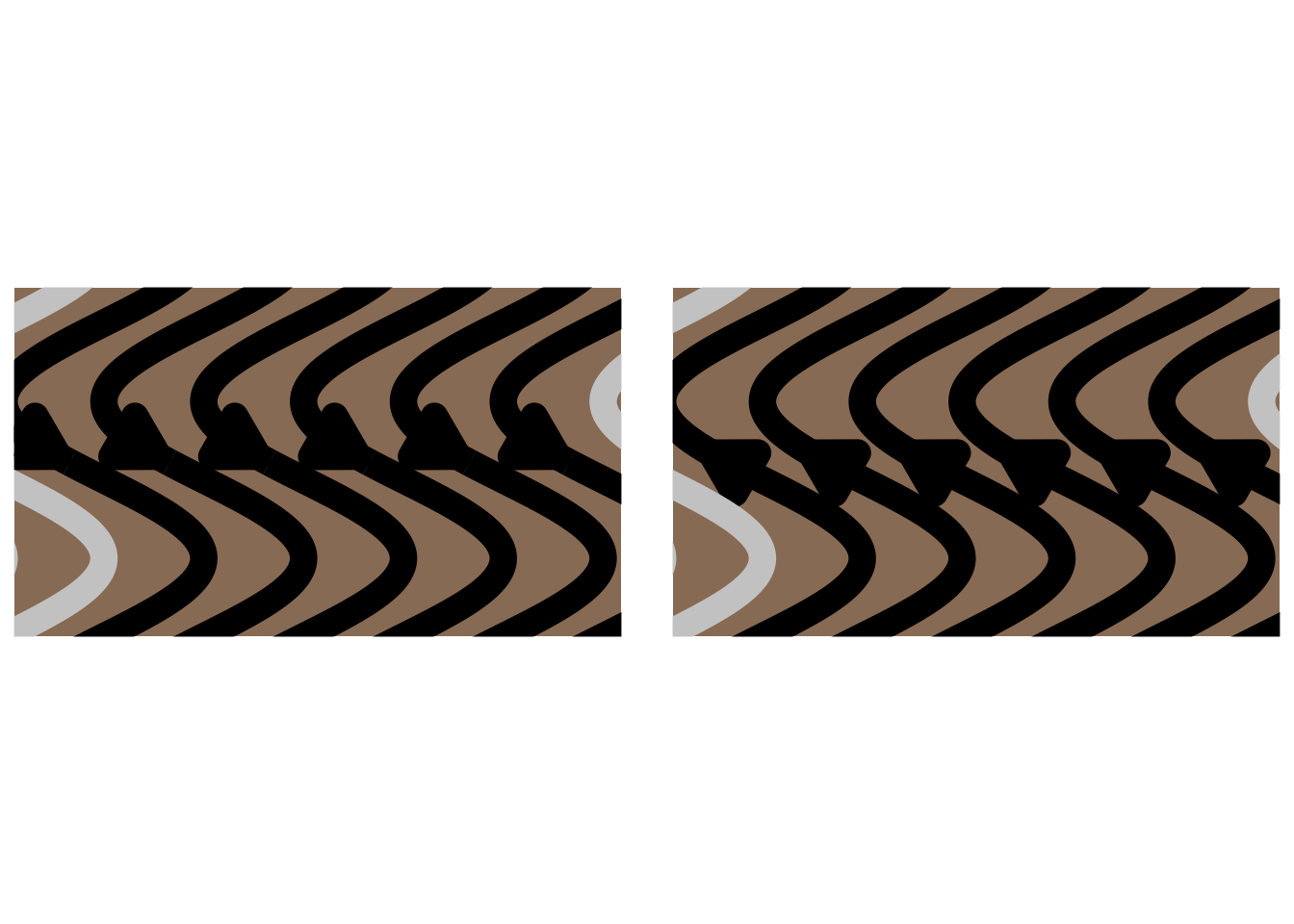

Cool! I like those. Now let’s make the vertical versions by swapping the x and y coordinates and combine them altogether with {patchwork}

seq_x_tb <- seq(from = -0.5,
                  to = 2.5 * pi,
                  by = pi / 100)
n_lines <- 11

data_top_and_bottom <- tibble(x = rep(seq_x_tb, 9),
       line = rep(seq(-1, 7), each = length(seq_x_tb))) %>%
  mutate(y = line + sin(x))

data_arrows_bottom_and_top <- data_top_and_bottom %>%
  filter(x %in% c(seq_x_tb[c(length(seq_x_tb) / 2 -1 , length(seq_x_tb) / 2 + 1)]),
         between(line, 1, 6)) %>%
  group_by(line) %>%
  summarise(xmin = min(x),
        xmax = max(x),
        ymax = max(y),
        ymin = min(y))

gg_top_to_bottom <- data_top_and_bottom %>%
  ggplot(aes(y = x, x = y, group = line)) +
    geom_segment(data = data_arrows_bottom_and_top,
               aes(y = xmin, x = ymax, yend = xmax, xend = ymin, group = line),
               arrow = arrow(type="closed", ends = "first"), linewidth = 5, show.legend = FALSE) +
  geom_path(linewidth = 5,
            show.legend = FALSE,
            aes(colour = ifelse(between(line, 1, 6), "main", "background"))) +
  scale_x_continuous(expand = expansion(0, -0.1)) +
  scale_y_continuous(expand = expansion(0, 0)) +
  scale_colour_manual(values = c("main" = "black",
                                 "background" = "grey80")) +
  coord_fixed(ratio = 1 / 2, ylim = c(0, 7), xlim = c(0, 2 * pi)) +
  theme_void() +
  theme(
    panel.background = element_rect(fill = "#9A7D66", colour = "transparent"),
    panel.border = element_blank()
  )

gg_bottom_to_top <- data_top_and_bottom %>%
  ggplot(aes(y = x, x = y, group = line)) +
    geom_segment(data = data_arrows_bottom_and_top,
               aes(y = xmin, x = ymax, yend = xmax, xend = ymin, group = line),
               arrow = arrow(type="closed", ends = "last"), linewidth = 5, show.legend = FALSE) +
  geom_path(linewidth = 5,
            show.legend = FALSE,
            aes(colour = ifelse(between(line, 1, 6), "main", "background"))) +
  scale_x_continuous(expand = expansion(0, -0.1)) +
  scale_y_continuous(expand = expansion(0, 0)) +
  scale_colour_manual(values = c("main" = "black",
                                 "background" = "grey80")) +
  coord_fixed(ratio = 1 / 2, ylim = c(0, 7), xlim = c(0, 2 * pi)) +
  theme_void() +
  theme(
    panel.background = element_rect(fill = "#9A7D66", colour = "transparent"),
    panel.border = element_blank()
  )


(gg_top_to_bottom + theme(plot.margin = margin(r = 20)) | gg_bottom_to_top)

ggptch_all_directions <- (gg_left_to_right + theme(plot.margin = margin(r = 20)) | gg_right_to_left) /
(gg_top_to_bottom + theme(plot.margin = margin(r = 20)) | gg_bottom_to_top)

ggptch_all_directions %>%
  ggsave(quarto_here("ggptch_all_directions.png"),
         .,
         width = 5 * 2 + 0.5,
         height = 2.5 * 2 + 1.5)

In an ideal world I’d play around with the vertical images to make them align better, but I can’t quite figure out how to do that today. Hopefully you’ll be seeing these charts again in a project soon. But even if not, I’m quite happy with how they look 😀
