Crawling with tidygraph

In this blogpost I use crawling the internal links between pages in the University of Oxford’s Research Data website as an excuse for finally getting to grips with tidygraph and ggraph
Author

Charlie Hadley

Published

February 27, 2018

During a meeting yesterday morning I offered to scrape a website that my colleagues are looking at redesigning. I didn’t really have any idea how to do it in R, but I was confident it wouldn’t be too tricky and there should be some good packages available for doing this kind of thing. I discovered the wonderful Rcrawler library and also took the opportunity to get more comfortable with tidygraph as I’ve been putting it off.

This blogpost covers the basics of how I scraped the data and wrangled it with tidygraph into the graph visualisation you can see here.

The Rcrawler documentation includes an example 1 of how to build a network of the internal links in a website, using the code below. This takes up to 2 minutes, so I’ve made the data available in a Gist here.

library("Rcrawler")
Rcrawler(
    Website = "http://researchdata.ox.ac.uk",
    no_cores = 4,
    no_conn = 4 ,
    NetworkData = TRUE,
    statslinks = TRUE
  )

The Rcrawler function creates two objects in your global workspace:

It’s much easier to work with these objects if we augment the NetwIndex object with the ids used in the NetwEdges object, and I’ll export the data into a Gist for reproducibility and so I don’t have to recrawl the site each time I generate this post!

library("tidyverse")
library("gistr")
rdo_oxford_index <- tibble(
  id = 1:length(NetwIndex),
  url = NetwIndex
) %>%
  mutate(name = url)

rdo_oxford_index %>%
  write_csv("rdo_oxford_index.csv")

NetwEdges %>%
  write_csv("rdo_oxford_edges.csv")

rdo_oxford_gist <- gist_create(
  files = c(
    "rdo_oxford_edges.csv",
    "rdo_oxford_index.csv"
  ),
  description = "Blogpost: crawling with tidygraph"
)

Now we can import the data directly from the gist as follows:

library("tidyverse")
rdo_oxford_edges <- read_csv("https://gist.githubusercontent.com/charliejhadley/ba5a983e4e29cae29d379fc9daf1d873/raw/dea7df7ae9a1542372fe6203362991ec019bb1c3/rdo_oxford_edges.csv")
rdo_oxford_index <- read_csv("https://gist.githubusercontent.com/charliejhadley/ba5a983e4e29cae29d379fc9daf1d873/raw/c3ead87cd4dc95696432b4f6547e4d7762132721/rdo_oxford_index.csv")

Let’s generate an igraph object for manipulation with the tidygraph library, after first removing self-loops via the simplify function but retain multiple edges between pairs of webpages. The graph is too large to visualise sensibly at present:

library("igraph")
rdo_oxford_igraph <- graph_from_data_frame(
  rdo_oxford_edges,
  vertices = rdo_oxford_index
) %>%
  simplify(remove.multiple = FALSE)
tibble(
  edges = ecount(rdo_oxford_igraph),
  vertices = vcount(rdo_oxford_igraph)
)
# A tibble: 1 × 2
  edges vertices
  <dbl>    <int>
1 20330      383

It would be useful if we could augment the rdo_oxford_index object with some features that allow us to selectively visualise certain types of pages, which include:

rdo_oxford_index <- rdo_oxford_index %>%
  mutate(paginated.page = if_else(str_detect(url, "/page/"),
                                  TRUE,
                                  FALSE)) %>%
  mutate(tag.page = if_else(str_detect(url, "/tag/"),
                                  TRUE,
                                  FALSE)) %>%
  mutate(portfolio.page = if_else(str_detect(url, "/portfolio/"),
                                  TRUE,
                                  FALSE))

Let’s also markup the pages linked to from the websites navigation menu and footer, as these are linked to on every single page!

library("rvest")
navbar_links <-
  read_html(
  "https://gist.githubusercontent.com/charliejhadley/ba5a983e4e29cae29d379fc9daf1d873/raw/4294b8180866b70f081c05a1dca9cb3bfd172fe3/navigation.html"
  ) %>%
  html_nodes("a") %>%
  html_attr('href') %>%
  unique()

footer_links <- c("http://researchdata.ox.ac.uk/credits/",
                  "http://researchdata.ox.ac.uk/rdm-delivery-group/",
                  "https://www1.admin.ox.ac.uk/researchsupport/researchcommittees/scworkgroups/rdmopendata/")

rdo_oxford_index <- rdo_oxford_index %>%
  mutate(navbar.page = if_else(url %in% navbar_links,
                               TRUE,
                               FALSE)) %>%
  mutate(footer.page = if_else(url %in% footer_links,
                               TRUE,
                               FALSE)) %>%
  mutate(node.id = row_number())

Now’s time for me to learn how to use tidygraph! To filter out the paginated.pages, portfolio.pages and tag.pages and all links to the navbar.pages and footer.pages I need to follow these steps:

library("tidygraph")
rdo_oxford_igraph <- graph_from_data_frame(
  rdo_oxford_edges,
  vertices = rdo_oxford_index
) %>%
  simplify(remove.multiple = FALSE)

navbar_page_new_ids <- rdo_oxford_index %>%
  filter(navbar.page == TRUE) %>%
  select(node.id) %>%
  .[[1]]

footer_page_new_ids <- rdo_oxford_index %>%
  filter(footer.page == TRUE) %>%
  select(node.id) %>%
  .[[1]]

rdo_oxford_tidygraph <- rdo_oxford_igraph %>%
  as_tbl_graph() %>%
  # to_undirected() %>%
  activate(nodes) %>%
  filter(paginated.page == FALSE & portfolio.page == FALSE & tag.page == FALSE) %>%
  activate(edges) %>%
  filter(!to %in% navbar_page_new_ids) %>%
  filter(!to %in% footer_page_new_ids)

Finally, let’s add a group column so we can easily colour the different types of pages with the ggraph library:

library("ggraph")
rdo_oxford_tidygraph <- rdo_oxford_tidygraph %>%
  activate(nodes) %>%
  mutate(group = if_else(navbar.page == TRUE,
                         "Navbar Page",
                         "Other Page")) %>%
  mutate(group = if_else(footer.page == TRUE,
                         "Footer Page",
                         group))

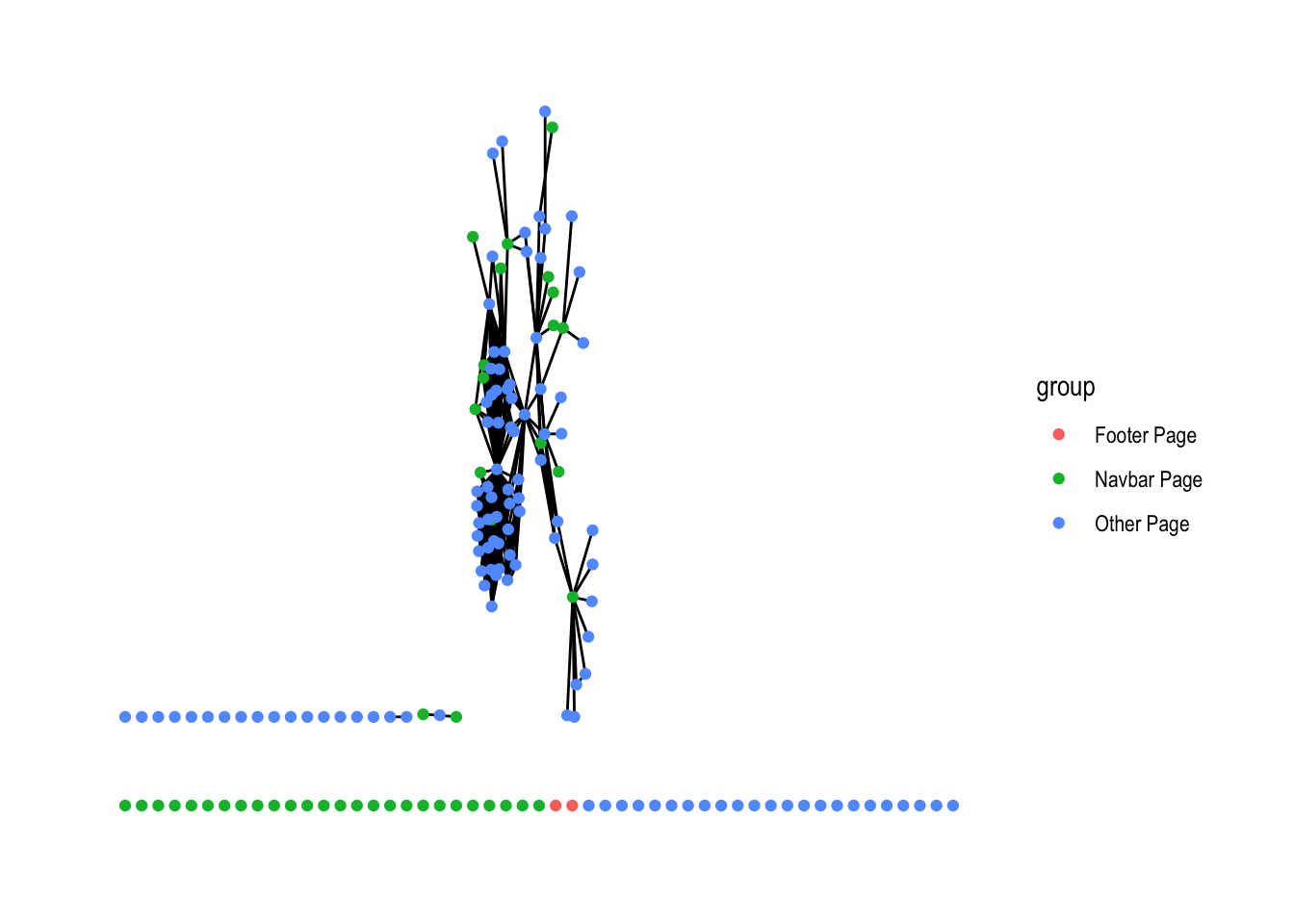

rdo_oxford_tidygraph %>%
  ggraph() +
  geom_edge_fan() +
  geom_node_point(aes(color = group)) +
  theme_graph()

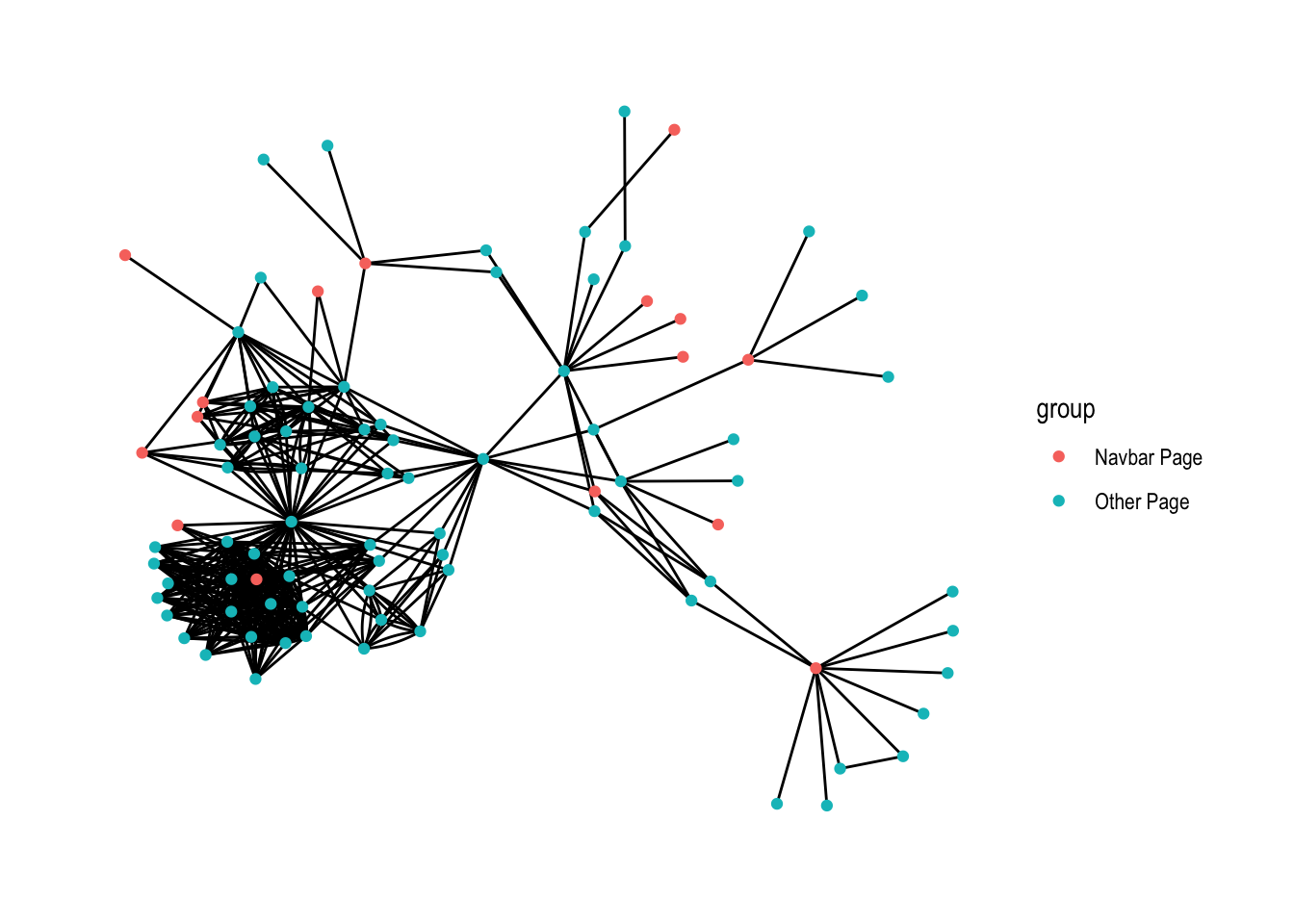

Actually, there are two more things I’d like to do: extract the largest connected component and make an interactive network viz. It was slightly frustrating to figure out from the documentation how to use the group_components function, but it became clear that it works similarly to group_indices:

rdo_oxford_tidygraph %>%
  activate(nodes) %>%
  mutate(component = group_components()) %>%
  filter(component == 1) %>%
  ggraph() +
  geom_edge_fan() +
  geom_node_point(aes(color = group)) +
  theme_graph()

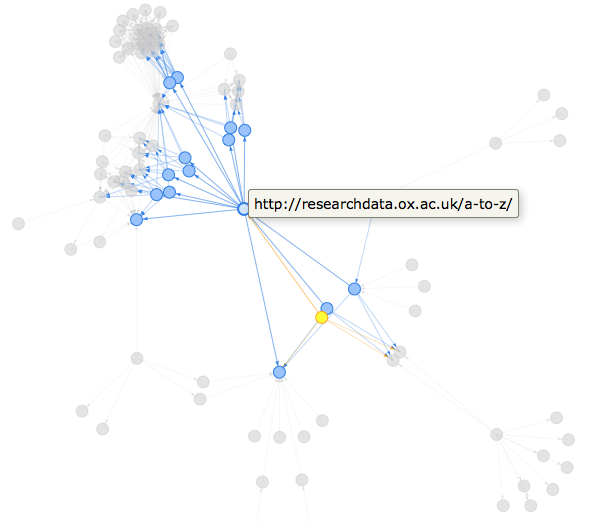

It’s really easy to create interactive dataviz using htmlwidgets (what are htmlwidgets?), my favourite option for network visualisations is visNetwork, which happily consumes igraph objects…

library("visNetwork")
rdo_oxford_tidygraph %>%
  activate(nodes) %>%
  mutate(component = group_components()) %>%
  filter(component == 1) %>%
  mutate(title = url) %>%
  mutate(label = "") %>% # remove long url labels from underneath nodes
  as.igraph() %>%
  visIgraph(idToLabel = FALSE) %>% # remove long url labels from underneath nodes
  visOptions(highlightNearest = TRUE) %>%
  visLegend()

This was a really fun way to learn how to use tidygraph and ggraph, which I’ve been putting off for a long time. I’m really grateful to Thomas Lin Pedersen for all his work on these amazing packages!

Footnotes

  1. Actually, there was an error in the example so I made a pull request to fix it 😄↩︎
