From the archive: 30DayChartChallenge 2022 Waffles

---

This post has been rescued from a side-project blog that I’ve disposed of and slowly reposting content from. In this post I made this waffle chart:

---

This chart was built for the “Part-to-whole” prompt in the 2022 #30DayChartChallenge. I wanted to make a waffle chart and also experiment with combining multiple charts together, I’ve still not really committed to {cowplot} or {patchwork} and when I began 2022’s 30DayChartChallenge one of my big goals was to get stuck into comparing them. Although I didn’t get too far with that, it was still constructive to build this chart.

I’m very fond of the Bechdel dataset from {fivethirtyeight} so this was a simple choice for chart. If you don’t know, knitr::kable() is a really cheap way to make a Markdown table that looks fine in Quarto and RMarkdown:

library(fivethirtyeight)
library(tidyverse)
bechdel_count_clean_test <- bechdel %>%
  count(clean_test)

label_tests_vec <- c("nowomen" = "No women in the movie", "notalk" = "No talking between women", "men" = "Talk about men", "dubious" = "Dubiously passes", "ok" = "Passed the test!")
label_tests_tib <- enframe(label_tests_vec) %>%
  rename(clean_test = name,
         test_label = value)


bechdel_count_clean_test <- bechdel %>%
  count(clean_test, sort = TRUE) %>%
  left_join(label_tests_tib) %>%
  mutate(test_label = fct_reorder(test_label, n))

bechdel_count_clean_test %>%
  knitr::kable()

clean_test	n	test_label
ok	803	Passed the test!
notalk	514	No talking between women
men	194	Talk about men
dubious	142	Dubiously passes
nowomen	141	No women in the movie

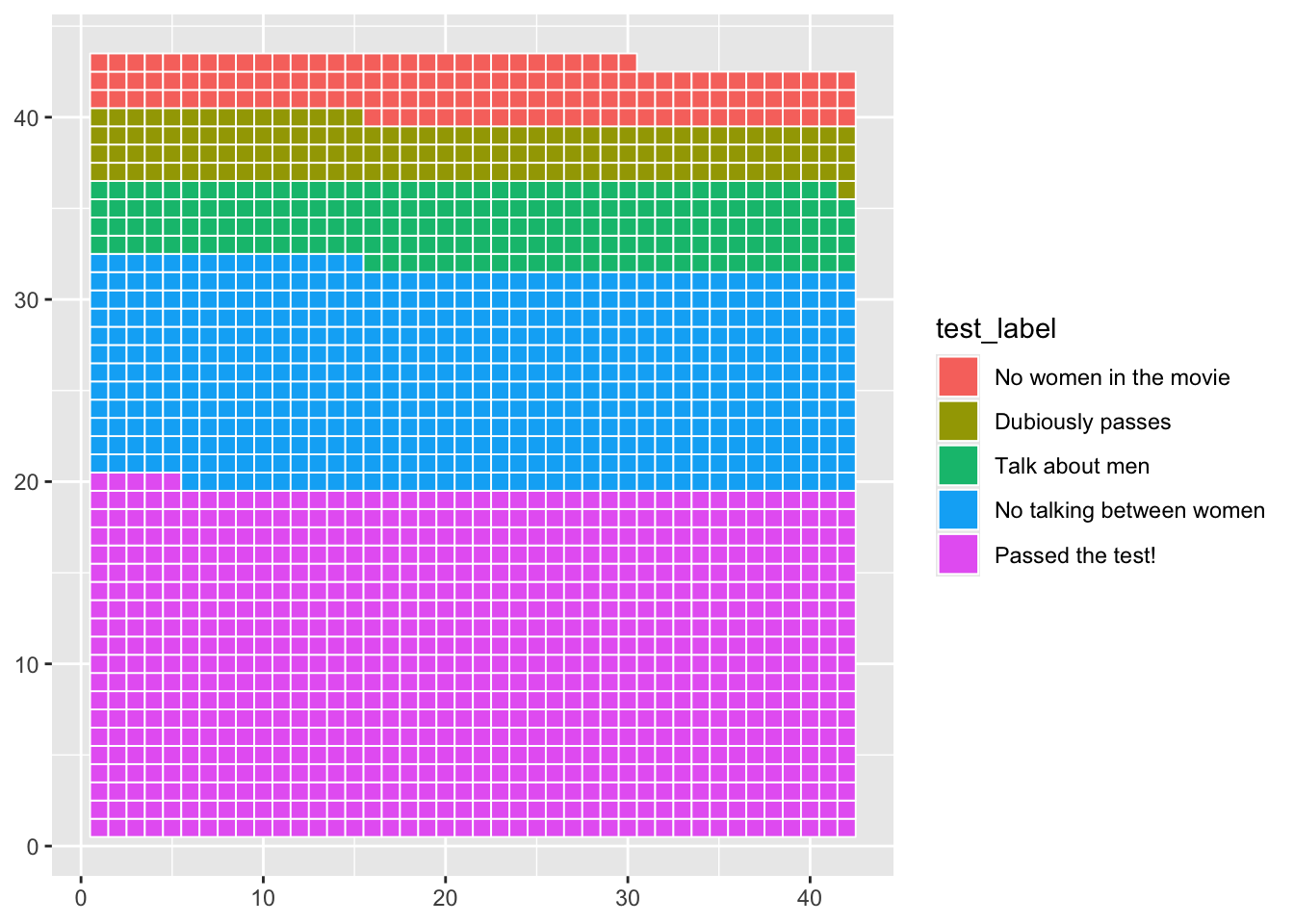

In 2022 it looked like {waffle} package was the best for making waffle charts with {ggplot2}. I got side tracked thinking about the math behind making aesthetically pleasing but eventually settled on the most square possible chart via round(sqrt(nrow(bechdel))).

library(waffle)
library(ggpomological)
library(hrbrthemes)
library(ggtext)
gg_waffle_bechdel <- bechdel_count_clean_test %>%
  ggplot(aes(fill = test_label, values = n)) +
  geom_waffle(n_rows = round(sqrt(nrow(bechdel))), size = 0.33, colour = "white", flip = TRUE) +
  coord_equal()
gg_waffle_bechdel

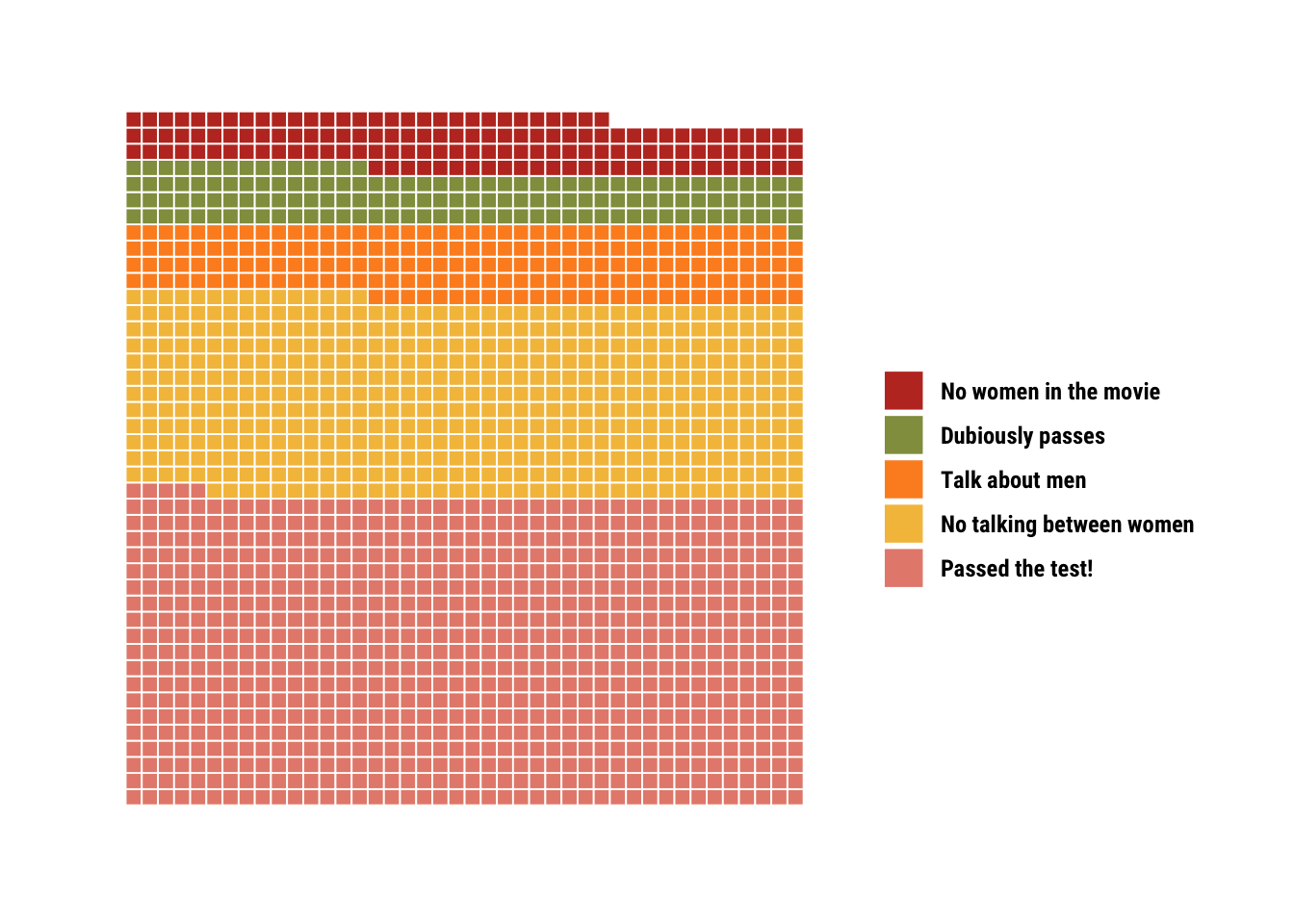

Let’s beautify:

bechdel_count_clean_test %>%
  ggplot(aes(fill = test_label, values = n)) +
  geom_waffle(n_rows = round(sqrt(nrow(bechdel))), size = 0.33, colour = "white", flip = TRUE) +
  scale_fill_pomological(name = "") +
  coord_equal() +
  theme_ipsum_rc(grid="") +
  theme_enhance_waffle()

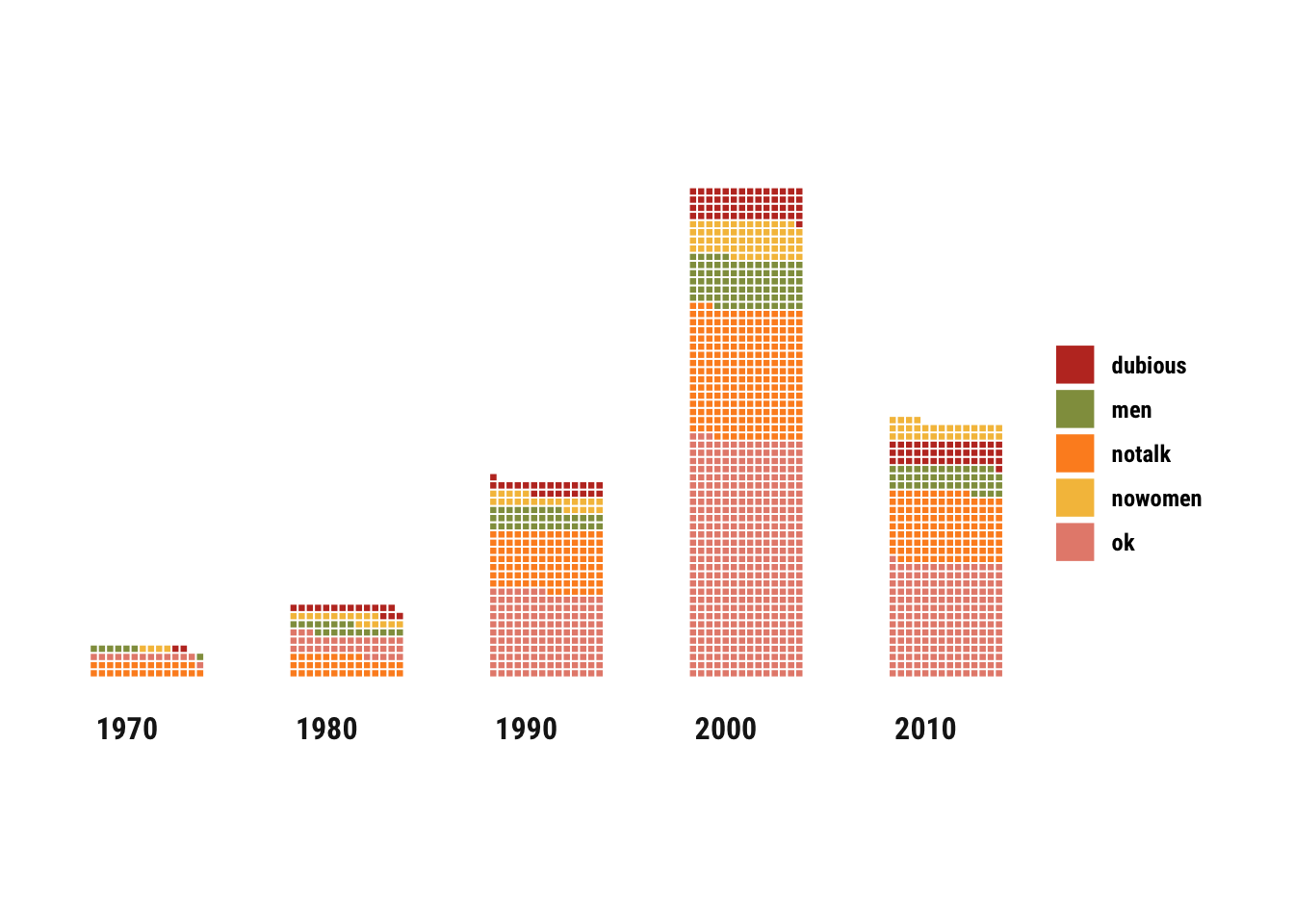

Let’s do this by decade. Again, it was fun to experiment with different n_rows() values. It feels to me like the best option is to use prime factors of the decade with most observations, which became 7 * 2.

bechdel_by_decade <- bechdel %>%
  mutate(decade = floor(year / 10) * 10) %>%
  count(decade, clean_test, sort = TRUE) %>%
  left_join(label_tests_tib) %>%
  mutate(test_label = fct_reorder(test_label, n))

bechdel_by_decade %>%
  ggplot(aes(fill = clean_test, values = n)) +
  geom_waffle(n_rows = 7 * 2, size = 0.33, colour = "white", flip = TRUE) +
  facet_wrap(~decade, nrow = 1, strip.position = "bottom") +
  scale_fill_pomological(name = "") +
  coord_equal() +
  theme_ipsum_rc(grid="") +
  theme_enhance_waffle()

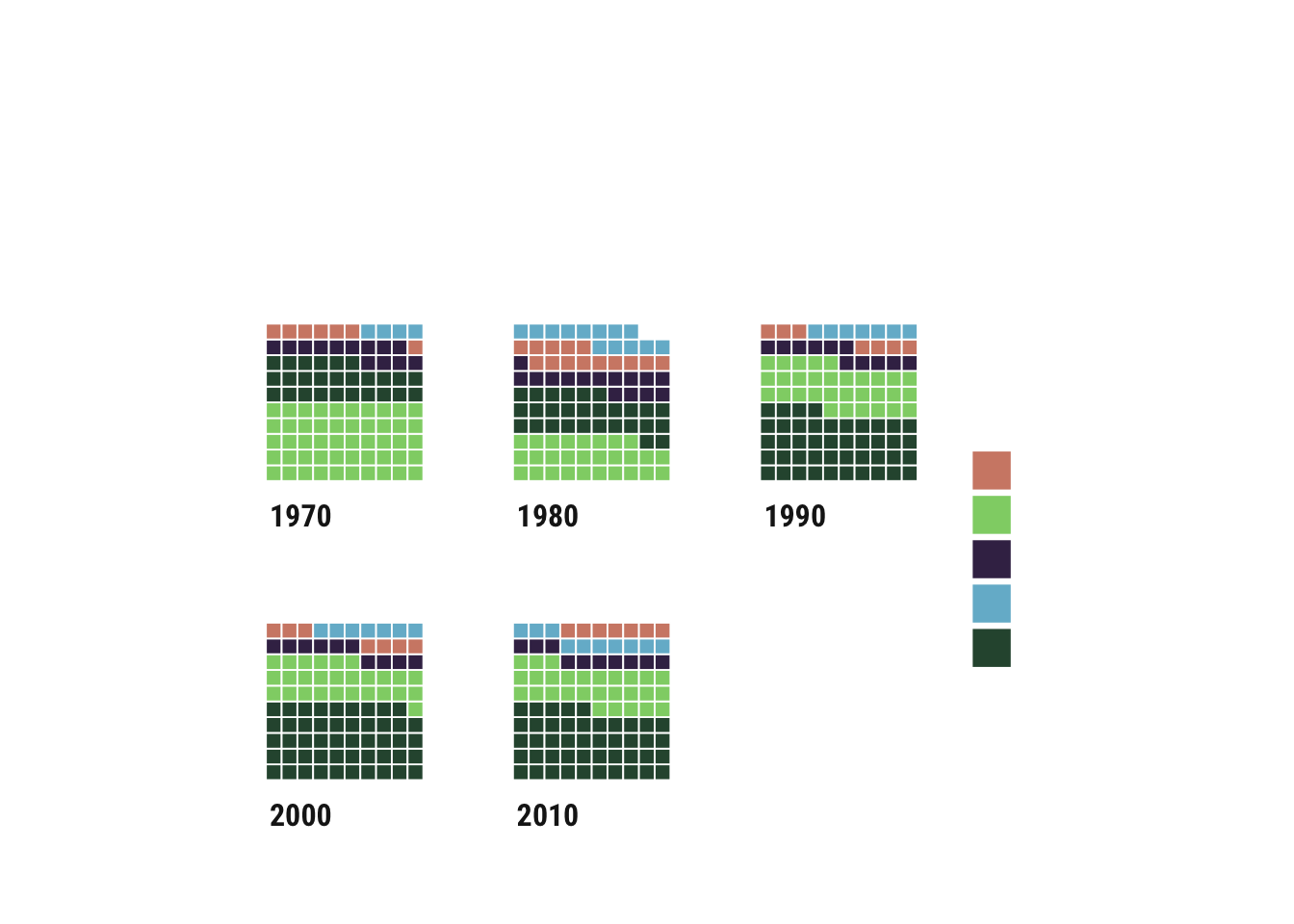

While that’s an interesting way to look at the data I abandoned this as I wanted something slightly more squarish for the eventual {cowplot} so I made a waffle per decade and added some title text.

gg_bechdel_decade_prop <- bechdel_by_decade %>%
  mutate(test_label = fct_relevel(test_label, label_tests_tib$test_label)) %>%
  ggplot(aes(fill = test_label, values = n)) +
  geom_waffle(n_rows = 10, size = 0.33, colour = "white", flip = TRUE, show.legend = TRUE, make_proportional = TRUE) +
  facet_wrap(~decade, nrow = 2, strip.position = "bottom") +
  scale_fill_ipsum(name = "") +
  labs(subtitle = paste("{waffle} charts are pretty fun!",
                      "<br>",
                      "<b>Square waffles</b>",
                      "<br>",
                      str_wrap("For the squarest waffles use this code: round(sqrt(nrow(data))). It'd be fun if this was an optional argument for geom_waffle()", 20),
                      "<br>",
                      "<b>Proportional Faceted waffles</b>",
                      "<br>",
                      "With proportional faceting n_rows should be a factor of 10. If not proportional, it feels like the best option is finding prime factors for the largest group. Consider using numbers::primeFactors() for that",
                      "<br>",
                      "<b>Paragraphs of text</b>",
                      "<br>",
                      "I've not really used {patchwork} or {cowplot} to add paragraphs of text. I'm always really impressed by folks who do have these nicely displayed summaries in their charts. So that's something I'm going to experiment with a lot this edition of #30DaysChartChallenge",
                      "<br>"
  )) +
  coord_equal() +
  theme_ipsum_rc(grid="") +
  theme_enhance_waffle() +
  theme(
    # plot.subtitle = element_markdown(lineheight = 1.25, hjust = 0, size = 13),
        plot.subtitle = element_textbox_simple(
      size = 10,
      padding = margin(2, 2, 2, 2),
      margin = margin(0, 0, 2, 0),
      lineheight = 1.25
    ),
        text = element_text(colour = "#242c28", family = "Arvo"))

gg_bechdel_decade_prop

These were then assembled together with {cowplot}:

library(cowplot)

gg_bechdel_waffle <- bechdel_count_clean_test %>%
  ggplot(aes(fill = test_label, values = n)) +
  geom_waffle(n_rows = round(sqrt(nrow(bechdel))), size = 0.33, colour = "white", flip = TRUE, show.legend = TRUE) +
  scale_fill_pomological(name = "") +
  guides(fill = guide_legend(nrow = 2)) +
  coord_equal() +
  theme_ipsum_rc(grid="") +
  theme_enhance_waffle() +
  theme(legend.position = "bottom")

cw_bechdel_waffles <- plot_grid(
  ggdraw() +
  draw_label(
    "#30DayChartChallenge 2022-04-01 Part to Whole: Waffles and the Bechdel Test",
    fontface = 'bold',
    x = 0,
    hjust = 0
  ) +
  theme(
    plot.margin = margin(0, 0, -10, 10),
    plot.title = element_text(family = "Arvo")
  ),
  plot_grid(gg_bechdel_waffle,
  gg_bechdel_decade_prop,
  nrow = 1,
  rel_widths = c(2, 3)),
  ncol= 1,
  rel_heights = c(0.05, 1)
)

cw_bechdel_waffles %>%
  ggsave(quarto_here("cw_bechdel_waffles.png"),
         .,
         width = 18,
         height = 8)
